8-Ton Texas Tuff Rock Bags armoring a subsea pipeline crossing.

Pipeline & Platform Scour Protection for Oil & Gas

Texas Tuff Rock Bags armor pipeline crossings, platform-base scour zones, and shore approaches for oil & gas operators and EPCs. The subsea-rated 8-Ton class is installable from vessel, conforms to bed change instead of fracturing, and carries a long-term in-water design life.

Request a Quote Call +1 512-766-6608

Why Texas Tuff Rock Bags

Why Oil & Gas Engineers Choose Texas Tuff Rock Bags

Pipeline and platform protection is unforgiving: an exposed pipe at a river crossing or a scoured platform base is an integrity risk, a regulatory exposure, and a remediation cost that compounds with every flood or storm season left unaddressed. The conventional armor options are rigid or placement-sensitive. Articulating concrete mats and grout bags set hard and undermine when the bed moves; loose rock and gabions migrate or corrode. Texas Tuff Rock Bags give pipeline-integrity and facilities engineers a flexible, discrete armor unit: an 8-Ton virgin-polyester mesh bag filled with stone, placeable in the wet or the dry and from a vessel offshore, that conforms to bed change rather than fracturing under it. The raschel-weave mesh will not unravel if a strand is cut, and 3-ply rope reinforces the lifting points. Independent ASTM, EN, and ISO testing documents the strength and the long-term in-water service life that buried-pipe and platform armor has to hold across the asset's operating life.

Use cases

Oil & Gas Use Cases

Three armor use cases — same 8-Ton bag, different deployment geometry around the asset.

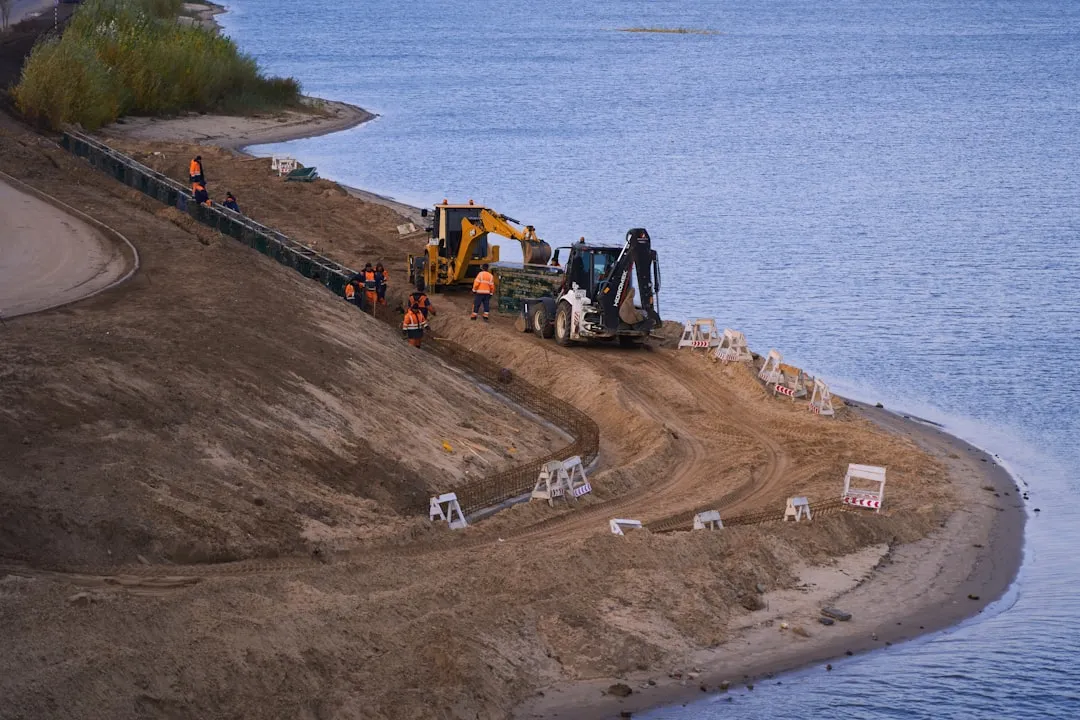

Pipeline-Crossing Armor

Armor pipeline crossings at rivers, channels, and subsea routes where burial depth is insufficient or scour exposes the line. Stacked Texas Tuff Rock Bags hold cover over the pipe, resist the free-spanning that drives fatigue, and conform to the channel as it migrates.

Learn more

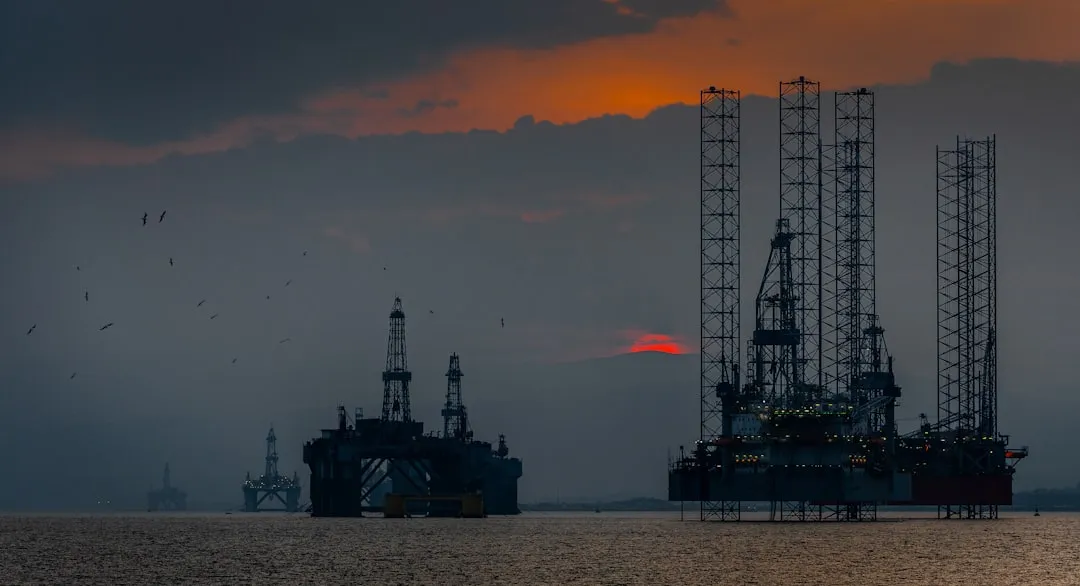

Platform & Structure Base Scour

Protect the scour zone around platform legs, subsea structures, and well-protection frames with conformable Texas Tuff Rock Bags. The mesh fills and settles with the developing scour hole instead of undermining like a rigid mat as the bed mobilizes around the structure.

Shore Approach & Landfall Protection

Armor pipeline shore approaches, landfalls, and onshore river crossings against bank erosion and overtopping. Bags stabilize the approach through the high-flow events that would otherwise expose or undercut the line where it transitions to land.

Learn more

Engineering

How Texas Tuff Rock Bags Perform Under Load

Decades

In-water design life

~30%

Fewer microplastics

3×

ASTM/ISO standards

Texas Tuff Rock Bags are built from virgin polyester mesh — not recycled — because virgin polyester retains more strength under thermo-mechanical stress and emits roughly 30% fewer microplastics under ISO 4484-1 testing than recycled alternatives. Independent laboratory testing certifies the material at a long-term service life in water (EN 12447 hydrolysis resistance) and approximately 30 years of UV resistance above the waterline (EN 12224). The mesh is a raschel weave, which prevents unraveling if a single strand is cut; a 3-ply polyester rope reinforces lifting points and the perimeter. ASTM/ISO tensile, puncture, and tear data document the bag's in-place strength under the impact loads of armor-stone placement and the cyclic loads of moving water.

Sizing

The 8-Ton Class for Subsea & Crossing Work

The subsea-rated 8-Ton Texas Tuff Rock Bag is the primary unit for oil & gas armor — sized for vessel handling, high design velocity, and the unit weight pipeline and platform protection require.

Primary unit

8-Ton Rock Bag

Volume: 6.0 m³
Diameter: 3.0 m
Mesh: 50 mm
Grouped current resistance: 19.4 ft/s

View the 8-Ton bag Full specifications

Reference the 4-Ton for shallower onshore crossings and the Texas Tuff Rock Log for linear runs.

In the field

Vessel & In-the-Wet Deployment

Oil & gas placement spans from onshore river crossings to deep-water subsea work, and the bag suits both. Bags are filled onshore or on deck inside a production frame, then lifted by the neck ring and placed by excavator, crane, or A-frame depending on the setting. Subsea placement is guided by ROV or survey to build the armor pattern over the pipeline corridor or around the structure base; onshore crossings are placed in the wet from a barge or in the dry from the bank. Because each bag is a discrete unit, the armor can be built up in layers, infilled on a return pass, and added to as monitoring data comes back. The conformable mesh seats on the existing bed without the graded, prepared subgrade that mattress and grout-bag systems require. Project-specific deployment methodology and integrity documentation are developed with your pipeline engineer and marine contractor.

How it compares

Oil & Gas Comparison: Rock Bags vs. Concrete Mattress, Grout Bags & Rock Dump

Texas Tuff Rock Bags combine the conformability of loose rock with the placement control of a discrete unit — avoiding the undermining of rigid mattresses and grout bags and the migration of an uncontrolled rock dump.

Read the full product comparison

FAQ

Oil & Gas FAQ

Can the bags be placed subsea from a vessel?

Yes. The 8-Ton class is filled on deck or onshore, then placed by crane or A-frame with ROV or survey-guided positioning. Onshore crossings are placed in the wet from a barge or in the dry from the bank. Deployment methodology is developed with your marine contractor.

How do rock bags compare to concrete mattresses and grout bags for pipeline protection?

Concrete mattresses and grout bags set rigid and undermine as the bed mobilizes. Rock bags are discrete, conformable units that settle with the bed, can be infilled or added to over time, and need no graded subgrade — reducing the free-spanning and undermining that drive pipeline integrity risk.

What size do I need for a river or subsea pipeline crossing?

8-Ton bags are the primary unit for high-velocity and subsea crossings and platform-base scour. 4-Ton bags suit shallower onshore crossings. Our engineering team sizes against design velocity, scour depth, and cover requirements.

What is the design life and what documentation is available?

Independent testing certifies a long-term in-water service life (EN 12447), with ASTM tensile, puncture, and tear data and ISO 4484-1 results. Spec sheets, test data, and CAD details are available for integrity and permitting submittals.

Do the bags release microplastics into the waterway or marine environment?

All polyester products release some microfibers. Texas Tuff Rock Bags use virgin polyester — not recycled — which emits roughly 30% fewer microplastics under ISO 4484-1 testing and retains more strength under load. See the microplastics research summary for the data.

See all FAQs

Request a Quote for Your Oil & Gas Project

Tell us about your crossing or platform scope — onshore or subsea, water depth, design velocity, and timeline. Our engineering team responds within one business day with sizing, deployment notes, lead time, and pricing.
