Texas Tuff Rock Bags armor bridge piers, abutments, and embankments against scour. Filled on-site with rock and placed by excavator in minutes, they deploy faster than riprap, conform to bed change instead of fracturing, and carry a long-term in-water design life.
Scour is the leading cause of bridge failure in the United States. Pier scour, abutment scour, and contraction scour each pull bed material away from the structures that need it most — and the conventional countermeasures all carry trade-offs. Riprap migrates downstream during the design flood it was placed to protect against. Gabion baskets corrode at the wire and become a maintenance liability. Articulating concrete mats demand a graded subgrade and crane access that many bridge sites can't accommodate. Engineered scour holes filled with native bed material restart the failure cycle within a single hydrologic season.
Texas Tuff Rock Bags armor the same scour zones with a flexible polyester-mesh unit that conforms to bed change rather than fracturing under it. Each bag is filled on-site with native or imported stone, placed in 5 to 12 minutes by excavator or crane, and stays where you put it — under the design flood and through subsequent events. No wire to corrode, no rigid structure to undermine, no quarry lead time to schedule around.
Four bridge-scour use cases — same bag, different deployment geometry around the structure.

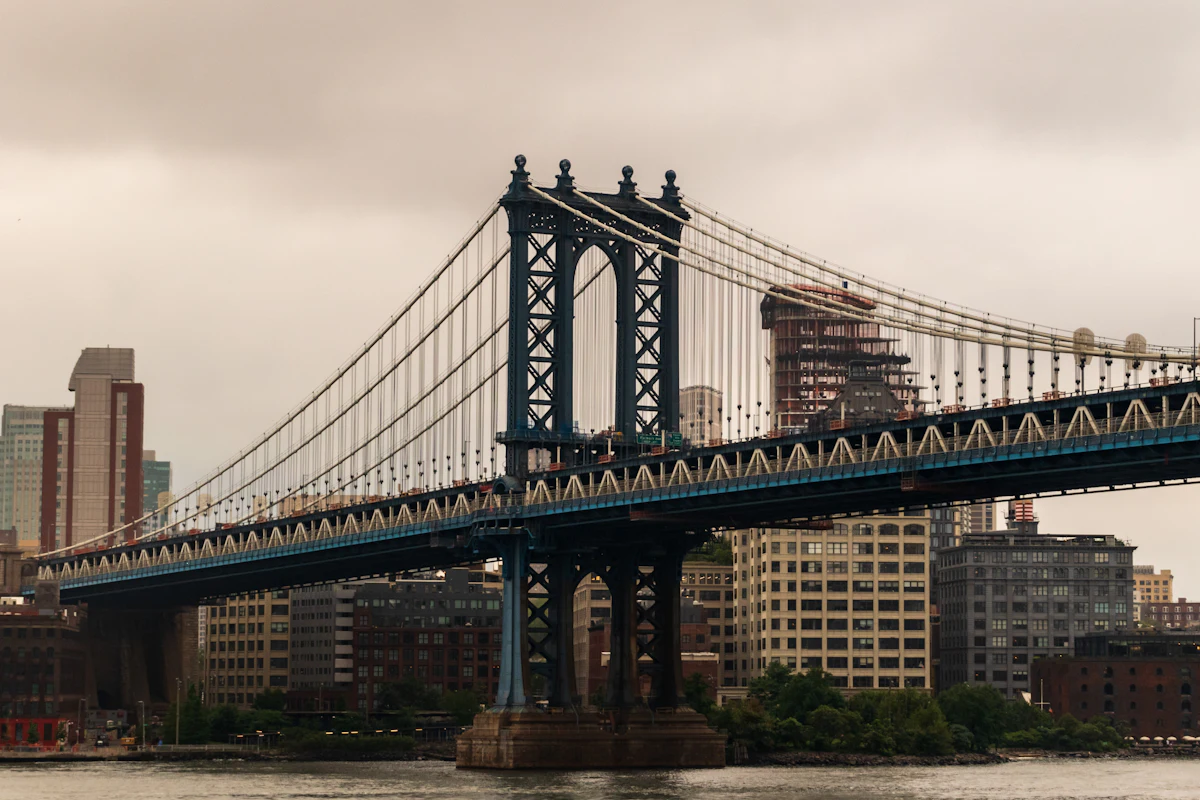

Place Texas Tuff Rock Bags as a countermeasure ring around bridge piers to dissipate horseshoe-vortex scour and protect the foundation. Bags can be stacked in a single layer for moderate scour depth or grouped and stacked for the design-flood scour hole. The flexible mesh conforms to bed change, so the protection settles with — not against — local scour, eliminating the under-mining that displaces rigid mats.

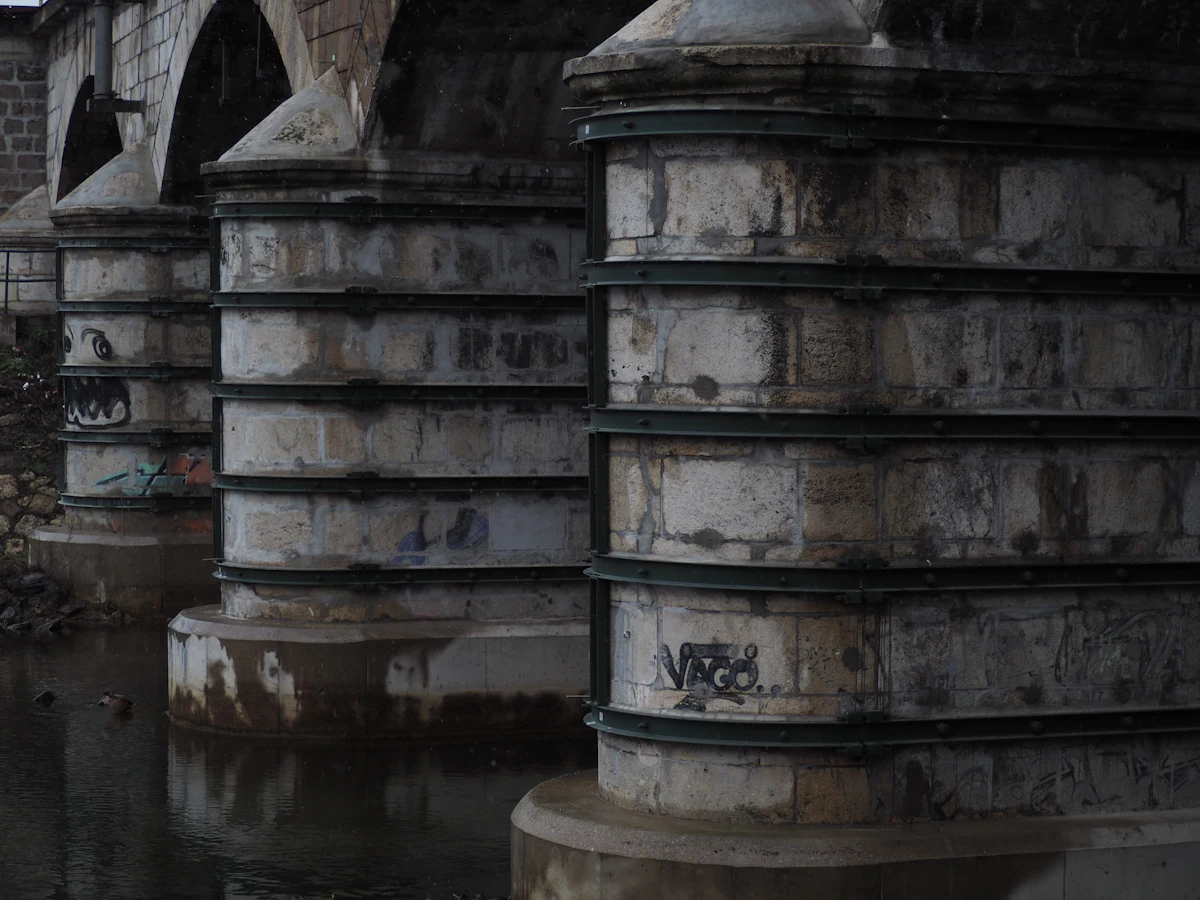

Armor abutment slopes and toe lines with continuous Texas Tuff Rock Bags or Texas Tuff Rock Logs. The bag profile breaks contraction-scour velocity at the abutment, protects the wing wall toe, and prevents the flanking-scour mechanism that erodes around the structure during high-flow events.

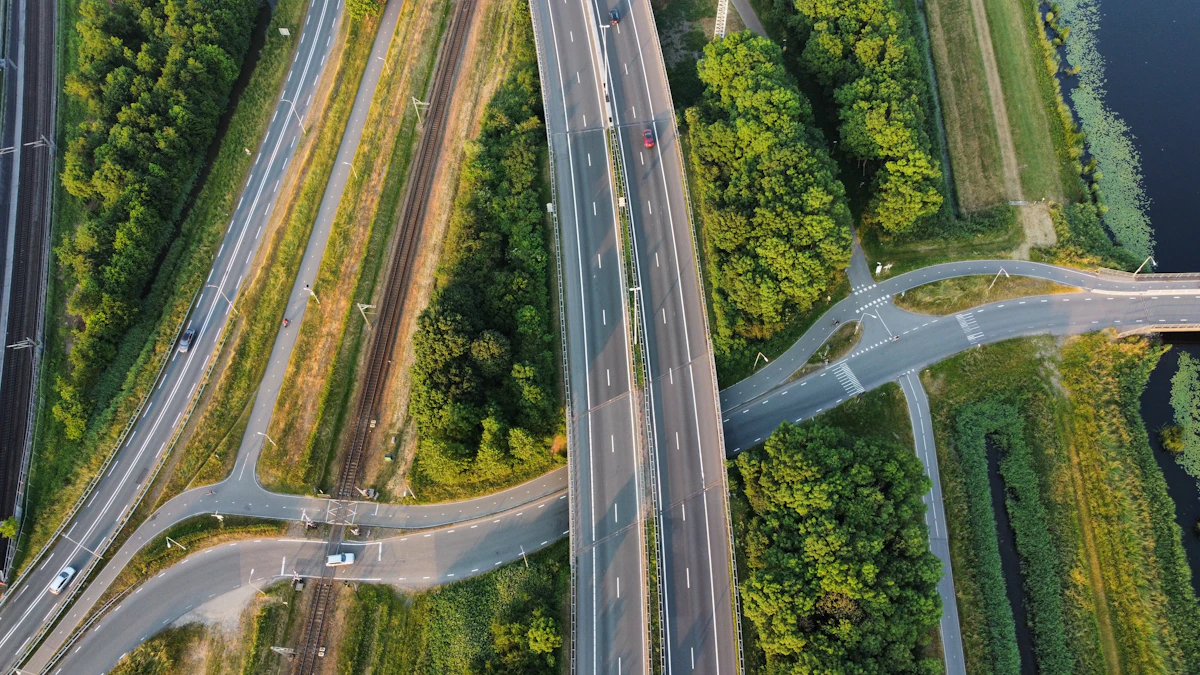

Approach embankments and bridge approach slopes erode under overtopping, runoff, and channel migration. Stair-stepped Texas Tuff Rock Bags armor the slope face from toe to crown, holding fill in place during the events that would otherwise cut the approach away from the deck.

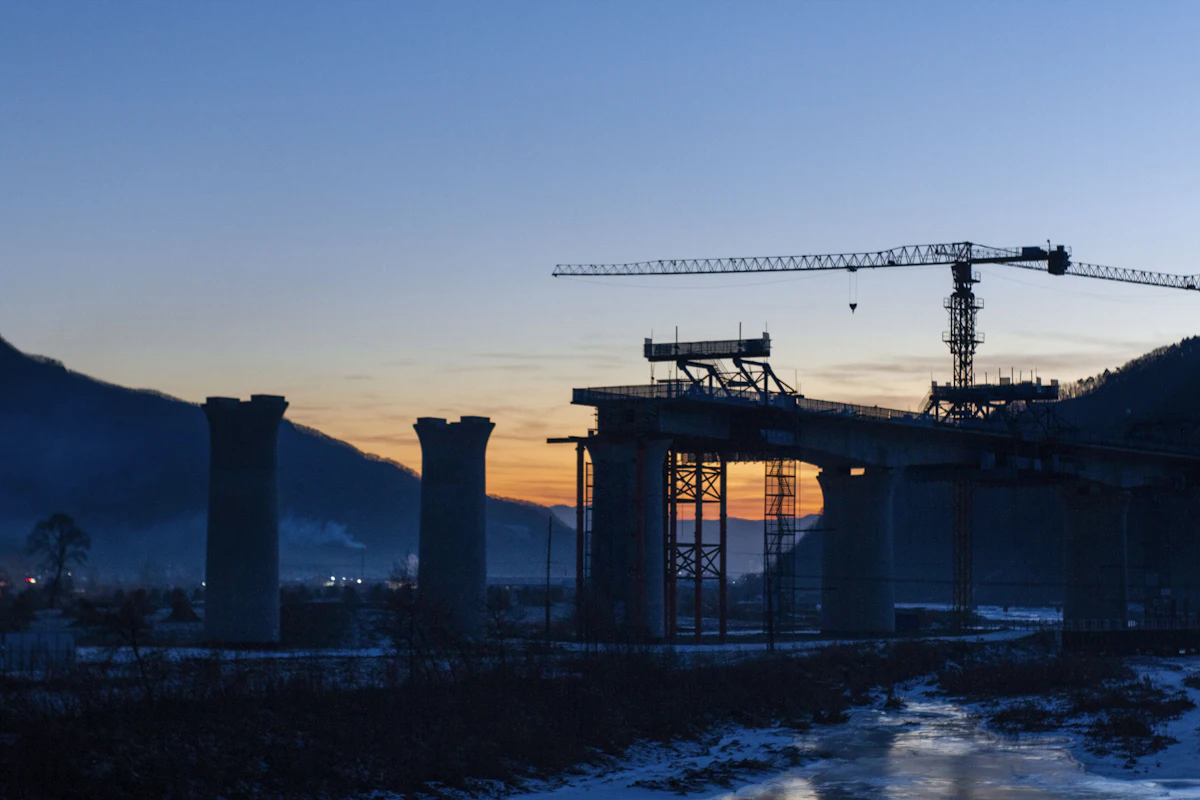

When inspection turns up an undermined pier or a scour hole that wasn't there last spring, the response window is short. Texas Tuff Rock Bags ship from stocked inventory and deploy with standard contractor equipment — excavator, crane, and a fill source on site. Crews can place 30 to 60+ bags per shift, restoring scour protection in days rather than the weeks an engineered countermeasure mobilization would require.
Texas Tuff Rock Bags are built from virgin polyester mesh — not recycled — because virgin polyester retains more strength under thermo-mechanical stress and emits roughly 30% fewer microplastics under ISO 4484-1 testing than recycled alternatives. Independent laboratory testing certifies the material at a long-term service life in water (EN 12447 hydrolysis resistance) and approximately 30 years of UV resistance above the waterline (EN 12224).
The mesh is a raschel weave, which prevents unraveling if a single strand is cut; a 3-ply polyester rope reinforces lifting points and the perimeter. ASTM tensile, puncture, and tear data document the bag's in-place strength under the impact loads of armor-stone placement and the cyclic loads of high-flow events.
Three weight classes plus the Texas Tuff Rock Log — each engineered for different flow velocities, scour depths, and structural geometries.
| Size | Mesh / Fill | Profile | Best bridge uses |
|---|---|---|---|
| 2-Ton | 25 mm mesh · 50–200 mm fill rock 1.13 m³ · 1.9 m diameter | 0.4 m tall · single stack | County and short-span bridges, low-flow piers, light abutment armor. |
| 4-Ton Most specified | 25 mm mesh · 50–200 mm fill rock 2.71 m³ · 2.4 m diameter | 0.6 m tall · single or stacked | Most-specified size — state DOT piers, abutments, embankments, scour repair. |
| 8-Ton | 50 mm mesh · 75–200 mm fill rock 6.0 m³ · 3.0 m diameter | 0.85 m tall · quad-layer mesh, 16 mm lifting rope | High-velocity rivers, deep scour holes, major-river crossings, design-flood events. |
| Texas Tuff Rock Log | Elongated mesh log — fills linear runs Built to site length | Continuous toe / line | Continuous abutment-toe and wing-wall-toe protection. |
Bridge installations are production work compatible with standard contractor equipment. Bags are filled inside a steel production frame using an excavator and two laborers — 5 to 8 minutes per bag — then lifted by the ring at the neck and placed by excavator or crane. Pier work commonly uses an in-the-wet deployment from a barge or temporary work platform; abutment and embankment work is usually in-the-dry from the bank.
Most bridge sites need little to no foundation prep beyond removing loose debris from the scour hole or grading a slope. On slopes under 40° the bags sit side-by-side in adjacent rows; on steeper banks they are stair-stepped with row overlap. The most critical step on every installation is tightening the ring and tying the support ropes at the bag neck — undertied bags lose their shape under impact loading.
Stage the production frame on the access route and remove loose debris from the scour zone.
Fill the bag inside the frame with 50–200 mm rock — 5 to 8 minutes per bag.
Tighten the neck ring and tie the support ropes — the single most critical step.
Place by excavator or crane: in-the-wet from a barge for piers, in-the-dry for abutments and embankments.
Group around piers, stack continuously at the abutment toe, stair-step on slopes.
Texas Tuff Rock Bags pair the placement speed of bagged armor with the flexibility under settlement that bridge sites actually need — outperforming traditional scour countermeasures on lead time, deployment, and lifecycle cost.
| Attribute (bridges) | Recommended
Texas Tuff Rock Bag
| Riprap | Gabion basket | Articulating concrete mat |
|---|---|---|---|---|
| Deployment per unit | 5–12 minutes | Truck-and-place — variable | Hours per basket; on-site assembly | Crane-set panels; rigging time |
| Foundation prep | Minimal | Full prep | Full prep + leveling | Graded subgrade required |
| Behavior under scour | Conforms to bed change | Migrates downstream | Wire fails over time | Cracks / undermines |
| In-water service life | Long-term | Decades, but displaces | PVC-coated wire often <15 yrs | Decades, but rigid |
| Site access required | Excavator or crane | Truck access | Truck + assembly area | Crane + barge |
| Mobilization for emergency repair | Days | Days–weeks | Weeks | Weeks |
Specification and procurement answers for bridge engineers, county engineers, USACE, state DOT teams, and civil contractors.
Texas Tuff Rock Bags are used as scour countermeasures on state DOT and municipal bridge projects. Specification language and supporting test data (ASTM/ISO tensile, puncture, and tear; EN 12224, EN 12447; ISO 4484-1) are available on request. We work with bridge engineers and resident engineers to develop project-specific specifications that fit your contract documents.
Rock bags deploy in 5–12 minutes per unit, conform to bed change rather than migrating or fracturing, and require minimal foundation prep. Riprap can migrate during the design flood. Articulating concrete mats require a graded subgrade and crane access many bridge sites can't accommodate. Rock bags fit between the two as a flexible, fast-deploying alternative.
4-Ton bags are the most-specified size for state DOT piers, abutments, and embankments. 8-Ton bags are typical for major-river crossings, deep scour holes, and design-flood events where individual unit weight matters. Our engineering team will size based on design velocity, scour depth, and pier geometry.
Texas Tuff Rock Bags ship from stocked inventory. Crews using standard contractor equipment can place 30 to 60+ bags per shift on most sites. Most emergency scour repairs deploy within days of the order — call +1 512-766-6608 for emergency lead times.
All polyester products release some microfibers. Texas Tuff Rock Bags are made from virgin polyester — not recycled — because virgin polyester emits roughly 30% fewer microplastics than recycled polyester under ISO 4484-1 testing, and retains more strength under thermo-mechanical stress. See the microplastics research summary for the underlying data.
Tell us about your bridge — pier, abutment, embankment, or emergency scour repair — with crossing location, design velocity if known, and timeline. Our engineering team responds within one business day with sizing, lead time, and pricing.
